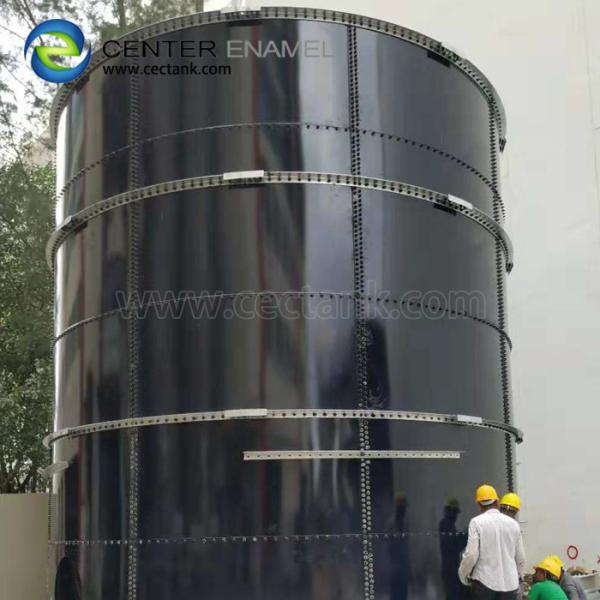

Poultry And Livestock Manure Storage Tanks

Poultry and livestock manure storage is an indispensable part of modern farms. The farm must be equipped with enough manure storage tanks to collect a large amount of manure flushing water and polluted runoff in today's farms and reduce the impact of farming sewage on the environment. Nowadays many farms used Glass-Lined steel tanks to store poultry and livestock manure.

What are Glass-Lined Steel Tanks

After firing at a high temperature of 820°C-930°C, the molten glass reacts with the surface of the steel plate to form an inert and inorganic bond, which combines the strength and flexibility of steel and excellent glass corrosion resistance. Therefore, glass-lined steel storage tanks provide many advantages over standard epoxy storage tanks or welded and painted storage tanks. Glass-lined steel technology is a high-quality coating technology in the storage tank market. Glass-lined steel tanks are widely used in applications such as bio-energy, municipal sewage, landfill leachate, and industrial wastewater treatment.

Our Water Storage tanks

Compared with other types of storage tanks, glass-lined steel tanks have significant advantages for customers, consultants, and contractors. The internal and external surfaces of the glass-lined steel tank are treated by melting glass to steel to provide long-term protection and have the following advantages:

Long life, reducing operating costs

Modular bolt tank structure, fast and cost-effective on-site installation-reduce project time, cost, and requirements for on-site equipment

Flexible shape, small footprint

Storage tanks can be expanded, disassembled and relocated, providing long-term asset value

The optimal corrosion resistance of glass fused steel

Safe and reliable storage, lowest maintenance cost

Complete range of diameter and height options, storage capacity solutions over 25,000m³, the most cost-effective solution

The installation time of the glass-lined steel tank depends on the size of the installed tank and the complexity of the installation process. Generally, the installation speed is very fast, usually less than one-third of the time required to complete a welded tank or concrete tank, but factors such as site complexity or specific job requirements can change the installation time.

The glass-lined steel tank is manufactured and produced in the factory and then transported to the project site for assembly. Each part is erected, sealed with gaskets, and bolted to adjacent parts. This results in a quick and easy installation process, much faster than the installation of concrete or welded storage tanks, and is not affected by weather delays, greatly reducing the time and labor on site.

How are they assembled?

Starting from the bottom of the structure, each panel is erected one layer at a time. Gaskets are installed between adjacent panel parts to form a firm seal and prevent damage to adjacent metal surfaces. Then install the appropriate fasteners and tighten them to specifications. Add accessories such as valves, doors, or manhole covers if necessary, and finally install the top cover of the tank. Since the installation is carried out in a larger part, the storage tank can be erected quickly, without sandblasting, painting, or other preparations on site.

Shijiazhuang Zhengzhong Technology Co.,Ltd is a professional manufacturer dedicated to the design and fabrication of bolted storage tanks since 1989. Our products range includes Glass-Fused-to-Steel (GFS) tanks, fusion bonded epoxy tanks, stainless steel tanks, galvanized steel tanks and aluminum geodesic dome roofs. With professional enameling R&D team and more than 20 enameling patents, Shijiazhuang Zhengzhong Technology Co.,Ltd has become the leader in bolted tanks industry of Asia. Our products are certified to ISO 9001, CE, NSF/ANSI 61, WRAS, ISO 28765, LFGB, BSCI, ISO 45001 and other international standards.

Shijiazhuang Zhengzhong Technology Co., Ltd is not only the first manufacturer in China which produces Glass-Fused-to-Steel tanks, but also the most experienced professional bolted tanks manufacturer in Asia. The engineering & design, product testing and quality system of Center Enamel Glass-Fused-to-Steel tanks is in strict accordance with AWWA D103-09, OSHA, ISO 28765, NSF/ANSI 61, NFPA and other international standards. Center Enamel Glass-Fused-to-Steel tanks are wildly used in drinking / potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture and other applications. Until 2023, Center Enamel bolted tanks have been exported to more than 100 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, Brazil and South Africa etc., the superior tank quality and prompt service gains us worldwide recognition.

As an outstanding containment and cover system provider with more than 30 years of experience, Shijiazhuang Zhengzhong Technology Co., Ltd sincerely expects to establish long-term cooperation with the local partners throughout the world and make continuous contribution to the development of the industry.
