Expandable Membrane Roof Bolted Steel Biogas Storage Tank

    Buy cheap Expandable Membrane Roof Bolted Steel Biogas Storage Tank from wholesalers

    Buy cheap Expandable Membrane Roof Bolted Steel Biogas Storage Tank from wholesalers
    • Buy cheap Expandable Membrane Roof Bolted Steel Biogas Storage Tank from wholesalers

    Expandable Membrane Roof Bolted Steel Biogas Storage Tank

    Ask Lasest Price
    Brand Name : CEC TANKS
    Model Number : W20161124028
    Certification : ISO 9001:2008, AWWA D103 , OSHA , BSCI
    Price : $5000~$20000 one set
    Payment Terms : L/C, T/T
    Supply Ability : 60 sets per month
    Delivery Time : 0-60 days after deposit received
    • Product Details
    • Company Profile

    Expandable Membrane Roof Bolted Steel Biogas Storage Tank

    Bolted Steel Biogas Storage Tank Manufacturer and Supplier in China


    Center Enamel Co., Ltd is the leading bolted steel biogas storage tanks manufacturer and supplier in China, but also the most experienced Bolted steel tanks manufacturer in all of Asia. Center Enamel biogas storage tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC biogas storage tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2020, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 90 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.


    Whether you’re fighting greenhouse gasses or the rising cost of energy, let Center Enamel help you build an anaerobic digester that will last. Biogas storage tank is also called biogas holder and is a kind of Anaerobic digestion tanks which are often cone shaped and supported at the centre with a single pole. The outer layer of membrane roof works as the protection for the inner membrane . The outer membrane is more strong and coated with UV resistance coating . Outer membrane can be against static electricity, ultraviolet radiation and aging. Inner coat can be against biogas leakage.


    Why use Glass-Fused-To-Steel Tank for biogas storage tank ?


    1. Advanced technology and innovative edge protection ensure Center Enamel Glass-Fused-to-Steel Tanks are the exceptional solution in most harshest storage environment.

    2. Center Enamel Glass-Fused-to-Steel tanks with superior corrosion resistance can be utilized in both the liquid and gaseous zone, and maximizing the service life of tank structure.

    3. Customized colors make the tank harmonized with the surrounding environment.

    4. Long service life glass coating requiring minimal maintenance, reducing the risk & loss of project shutdown during operation.

    5. Modular bolted constructure give shorter installation period with simple installation tools.

    6. Tank can be dismantled and rebuilt, gives continuous asset value to the product.


    Glass fused to steel Biogas Storage Tank Specifications


    Coating colordark blue, dark green, white, and customized
    A standard steel plate sizeeffective size 2400mm x 1200 m
    Steel plates thickness3mm - 12mm, depends on the diameter & height
    Coating thickness0.25mm - 0.4mm, two coatings internal and external
    Acid and alkalinity proofstandard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
    Adhesion3,450N/cm
    Elasticsame as steel sheet, around 500KN/mm
    Hardness6.0 Mohs
    Service life>30 years
    Spark test>1500 V
    Permeabilitygas and liquid impermeable
    Easy yo cleansmooth, glossy, inert, anti-adhesion
    Corrosion resistanceexcellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil,
    salt fox, organic and inorganic compounds

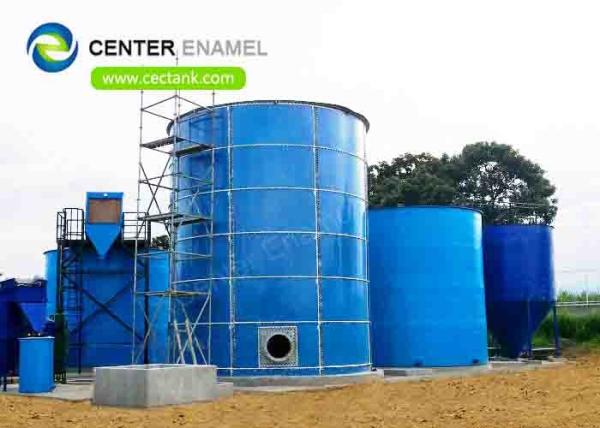

    Biogas Storage tanks Project References


    Expandable Membrane Roof Bolted Steel Biogas Storage Tank
